XS-2-J-F型吸湿器、XS-2-J-W型吸湿器
- 厂家信息
- 产品信息
- 规格参数
- 技术文档
产品图片

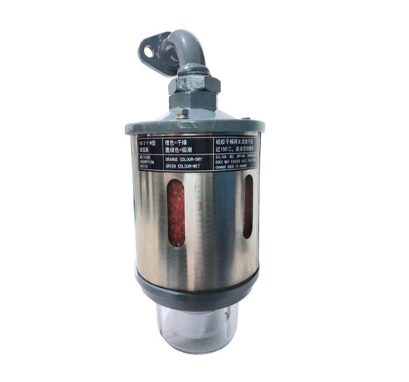

XS-2-J-F型吸湿器
1、用途
本吸湿器是用于牵引变压器油箱的一种空气过滤装置，通过其内装的吸湿剂以吸去进入其内的空气中的水分，以便延缓绝缘油的老化。
1. Application
The dehydrating breather is an air filter device used for traction of transformer oil tank, which can absorb moisture from the air entering the transformer oil tank through the moisture absorbent inside, so as to delay the aging of insulating oil.
2、工作条件
2.1 环境温度：-40℃～+70℃；
2.2 相对湿度：≤95%；
2.3 海拔：≤3640m；
2.4 满足机车正常运行时产生的冲击和振动要求。
2. Operational environment and conditions
2.1 Surrounding ambient temperature: -40℃ ~ +70℃.
2.2 Relative humidity: ≤95%
2.3 Altitude: ≤3640 m
2.4 To meet the impact and vibration requirements of normal operation of locomotive.
3、技术参数
3.1 内装硅胶颗粒大于 1Kg；
3.2 球状硅胶颗粒直径 2~7mm；
3.3 硅胶干燥状态为橙色，吸湿后为墨绿色。
3. Technical Data
3.1 The weight of silica gel granules inside is greater than 1Kg .
3.2 The diameter of spherical silica gel granules is 2~7mm.
3.3 The color of silica gel is orange when it is dry and dark green when it is hygroscopic.

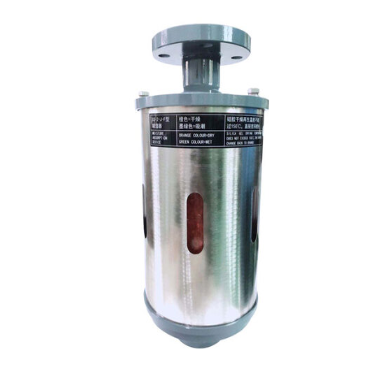

XS-2-J-W型吸湿器
1、用途
本吸湿器是用于牵引变压器油箱的一种空气过滤装置，通过其内装的吸湿剂以吸去进入其内的空气中的水分，以便延缓绝缘油的老化。
1. Application
The dehydrating breather is an air filter device used for traction of transformer oil tank, which can absorb moisture from the air entering the transformer oil tank through the moisture absorbent inside, so as to delay the aging of insulating oil.
2、工作条件
2.1 环境温度：-40℃～+70℃；
2.2 相对湿度：≤95%；
2.3 海拔：≤3640m；
2.4 满足机车正常运行时产生的冲击和振动要求。
2. Operational environment and conditions
2.1 Surrounding ambient temperature: -40℃ ~ +70℃.
2.2 Relative humidity: ≤95%
2.3 Altitude: ≤3640 m
2.4 To meet the impact and vibration requirements of normal operation of locomotive.
3、技术参数
3.1 内装硅胶颗粒大于 0.7Kg；
3.2 球状硅胶颗粒直径 2~7mm；
3.3 硅胶干燥状态为橙色，吸湿后为墨绿色。
3. Technical Data
3.1 The weight of silica gel granules inside is greater than 1Kg .
3.2 The diameter of spherical silica gel granules is 2~7mm.
3.3 The color of silica gel is orange when it is dry and dark green when it is hygroscopic.
1、用途
本吸湿器是用于牵引变压器油箱的一种空气过滤装置，通过其内装的吸湿剂以吸去进入其内的空气中的水分，以便延缓绝缘油的老化。
1. Application
The dehydrating breather is an air filter device used for traction of transformer oil tank, which can absorb moisture from the air entering the transformer oil tank through the moisture absorbent inside, so as to delay the aging of insulating oil.
2、工作条件
2.1 环境温度：-40℃～+70℃；
2.2 相对湿度：≤95%；
2.3 海拔：≤3640m；
2.4 满足机车正常运行时产生的冲击和振动要求。
2. Operational environment and conditions
2.1 Surrounding ambient temperature: -40℃ ~ +70℃.
2.2 Relative humidity: ≤95%
2.3 Altitude: ≤3640 m
2.4 To meet the impact and vibration requirements of normal operation of locomotive.
3、技术参数
3.1 内装硅胶颗粒大于 1Kg；
3.2 球状硅胶颗粒直径 2~7mm；
3.3 硅胶干燥状态为橙色，吸湿后为墨绿色。
3. Technical Data
3.1 The weight of silica gel granules inside is greater than 1Kg .
3.2 The diameter of spherical silica gel granules is 2~7mm.
3.3 The color of silica gel is orange when it is dry and dark green when it is hygroscopic.
